Hub-type gear shaper cutter with DIN 5480
2021-10-18 13:15:49
jiangxingTools
3751

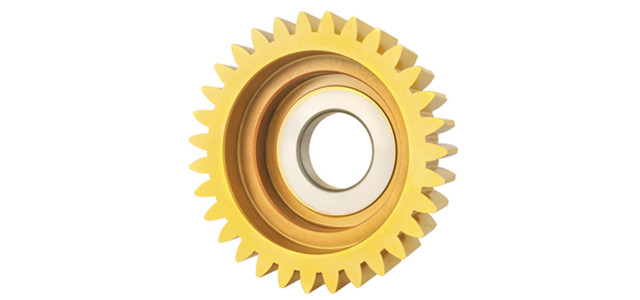

Hub-type gear shaper cutter with DIN 5480

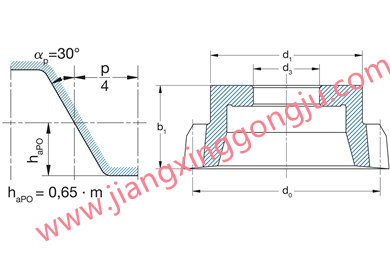

Tooth profile to DIN5480 standard
Module: m1.5-10
Number of teeth: Z10-58
Pressure angle: 30°
Bore: 31.743mm, 44.443mm
High precision gear shaper cutters from Jiangxing Tools are available within a very short time. The standard gear shaping tools are manufactured from M35, ASP2052 and S390 material with an Alcrona Pro coating. The range of stock gear tools also offers gear making company great flexibility. Here you will find the available models in the category hub-type shaper cutters DIN 5480. The stock tools are available within a short space of time, and including measurement report.
